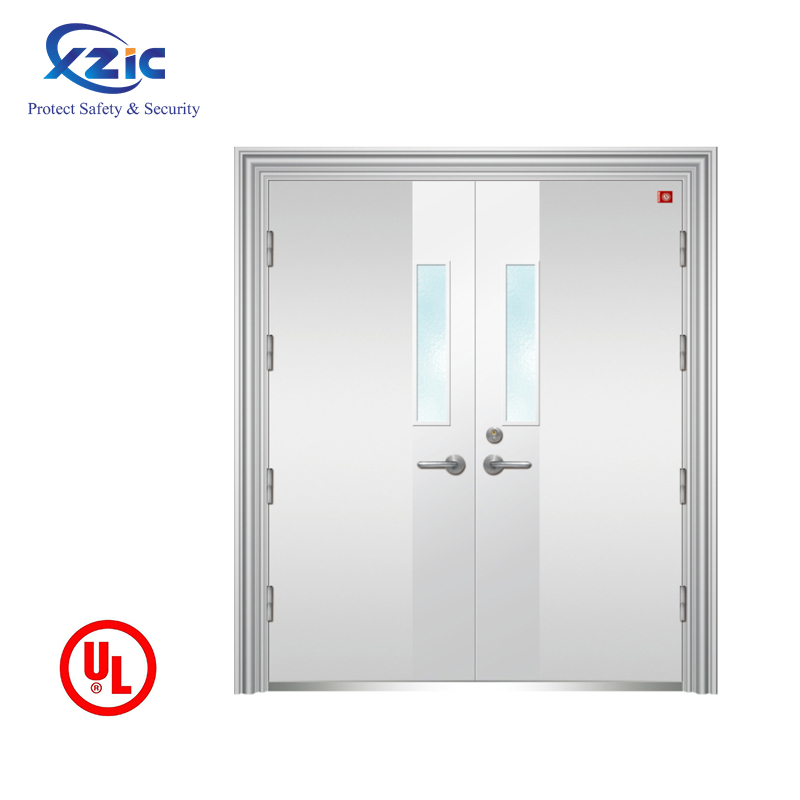

UL Fire Door Specification |
Brand | Xunzhong |
Certifications | UL NUM(R39532/R39533) |
Filler Material | Honey Core, Mineral rock wool, polyurethane core. |
Fire rated time | 1 hour up to 3 hours. Min. Thickness 45mm |
Size | Maximum size is (2530x2530mm) |
Door leaf sheet | 22 Ga. - 18 Ga. (0.8/1.0/1.2 mm) stainless steel sheet |
Door frame sheet | 16 Ga. - 14 Ga. (1.5mm-2.0mm). stainless steel sheet |
Surface finish | Door leaf and frame powder coated finish. |
Frame depth | 115mm - 240mm |
Opening direction | Swing Inward / Outward |
Color | RAL color system, could be customized as well. |
Accessories | Lock,handle,hinges,door closer,panic bar and other as requested. |
Vision Panel | With or without as requested. |
Lite Frame | UL listed lite frame. (UL Number: 39534) |
Louver | With or without as requested. |
Feature | Fire proof and thermal insulation. |
Application | building project, business, home decoration(Office, hotel, church, home etc.) |
Package | Wooden pallets. |
MOQ | 1 Set |
